Significance/p-value calculation¶
This tutorial shows how to calculate the significance (p-value).
For this example we use the location of the blazar TXS 0506+056 as its observed TS in the time-integrated analysis is lower than the one of NGC 1068. And this makes the calculation of the corresponding p-value based on pseudo-experiment less expensive.
For analysis setup details check the Fitting a steady point-source with the public 14-year IceCube track data tutorial.
[1]:
import numpy as np
from matplotlib import pyplot as plt
import skyllh
from skyllh.analyses.i3.publicdata_ps.time_integrated_ps import create_analysis
from skyllh.core.config import Config
from skyllh.core.source_model import PointLikeSource
cfg = Config()
datasets = skyllh.create_datasets('IceTracks-DR2', cfg=cfg)
# Location of the blazatar TXS 0506+056
src_ra = 77.35 # degrees
src_dec = 5.7 # degrees
source = PointLikeSource(ra=np.radians(src_ra), dec=np.radians(src_dec))
ana = create_analysis(cfg=cfg, datasets=datasets, source=source)
100%|██████████| 33/33 [00:00<00:00, 603.49it/s]
100%|██████████| 33/33 [00:00<00:00, 325.38it/s]
100%|██████████| 33/33 [00:00<00:00, 595.61it/s]
100%|██████████| 33/33 [00:00<00:00, 603.72it/s]
100%|██████████| 4/4 [00:11<00:00, 2.88s/it]
100%|██████████| 136/136 [00:00<00:00, 11742.22it/s]
Initializing the analysis instance and unblinding the data.
[2]:
from skyllh.core.random import RandomStateService
rss = RandomStateService(3090)
ts, fitparam_values, status = ana.unblind(rss)
ns_bf = fitparam_values['ns']
gamma_bf = fitparam_values['gamma']
print(f'Unblinded results: TS={ts:.2f}, ns={ns_bf:.2f}, gamma={gamma_bf:.2f}')
print(f'Minimizer status: {status}')
Unblinded results: TS=9.77, ns=8.80, gamma=1.97
Minimizer status: {'grad': array([-3.66069500e-06, 5.61787954e-05]), 'task': 'CONVERGENCE: RELATIVE REDUCTION OF F <= FACTR*EPSMCH', 'funcalls': 16, 'nit': 11, 'warnflag': 0, 'skyllh_minimizer_n_reps': 0, 'n_llhratio_func_calls': 16}
Calculating the significance (local p-value) by generating the test-statistic distribution of background-only pseudo_experiments (trials)¶
The local significance of the source, i.e. its p-value, can be calculated by generating the test-statistic distribution of background-only pseudo-experiment, i.e. for zero injected signal events. SkyLLH provides the helper function create_trial_data_file to generate these trials and store them in a numpy file for later usage.
[3]:
from skyllh.core.utils.analysis import create_trial_data_file
[4]:
help(create_trial_data_file)
Help on function create_trial_data_file in module skyllh.core.utils.analysis:
create_trial_data_file(
ana,
rss,
n_trials,
mean_n_sig=0,
mean_n_sig_null=0,
mean_n_bkg_list=None,
minimizer_rss=None,
bkg_kwargs=None,
sig_kwargs=None,
pathfilename=None,
ncpu=None,
ppbar=None,
tl=None
)
Creates and fills a trial data file with `n_trials` generated trials for
each mean number of injected signal events specified by `mean_n_sig` for a
given analysis.
Parameters
----------
ana : instance of Analysis
The Analysis instance to use for the trial generation.
rss : instance of RandomStateService
The RandomStateService instance to use for generating random
numbers.
n_trials : int
The number of trials to perform for each hypothesis test.
mean_n_sig : ndarray of float | float | 2- or 3-element sequence of float
The array of mean number of injected signal events (MNOISEs) for which
to generate trials. If this argument is not a ndarray, an array of
MNOISEs is generated based on this argument.
If a single float is given, only this given MNOISEs are injected.
If a 2-element sequence of floats is given, it specifies the range of
MNOISEs with a step size of one.
If a 3-element sequence of floats is given, it specifies the range plus
the step size of the MNOISEs.
mean_n_sig_null : ndarray of float | float | 2- or 3-element sequence of float
The array of the fixed mean number of signal events (FMNOSEs) for the
null-hypothesis for which to generate trials. If this argument is not a
ndarray, an array of FMNOSEs is generated based on this argument.
If a single float is given, only this given FMNOSEs are used.
If a 2-element sequence of floats is given, it specifies the range of
FMNOSEs with a step size of one.
If a 3-element sequence of floats is given, it specifies the range plus
the step size of the FMNOSEs.
mean_n_bkg_list : list of float | None
The mean number of background events that should be generated for
each dataset. This parameter is passed to the ``do_trials`` method of
the ``Analysis`` class. If set to None (the default), the background
generation method needs to obtain this number itself.
minimizer_rss : instance of RandomStateService | None
The instance of RandomStateService to use for generating random
numbers for the minimizer, e.g. new initial fit parameter values.
If set to ``None``, a rss with the same seed as ``rss`` will be
initialized.
bkg_kwargs : dict | None
Additional keyword arguments for the `generate_events` method of the
background generation method class. An usual keyword argument is
`poisson`.
sig_kwargs : dict | None
Additional keyword arguments for the `generate_signal_events` method
of the `SignalGenerator` class. An usual keyword argument is
`poisson`.
pathfilename : string | None
Trial data file path including the filename.
If set to None generated trials won't be saved.
ncpu : int | None
The number of CPUs to use.
ppbar : instance of ProgressBar | None
The optional instance of the parent progress bar.
tl: instance of TimeLord | None
The instance of TimeLord that should be used to measure individual
tasks.
Returns
-------
seed : int
The seed used to generate the trials.
mean_n_sig : 1d ndarray
The array holding the mean number of signal events used to generate the
trials.
mean_n_sig_null : 1d ndarray
The array holding the fixed mean number of signal events for the
null-hypothesis used to generate the trials.
trial_data : structured numpy ndarray
The generated trial data.
[5]:
from skyllh.core.timing import TimeLord
tl = TimeLord()
[6]:
rss = RandomStateService(seed=1)
(_, _, _, trials) = create_trial_data_file(
ana=ana, rss=rss, n_trials=1e3, mean_n_sig=0, pathfilename='txs_bkg_trails.npy', ncpu=8, tl=tl
)
print(tl)
100%|██████████| 1001/1001 [00:17<00:00, 55.99it/s]
TimeLord: Executed tasks:
[Generating background events for dataset "IC40". ] 7.8e-04 sec/iter (1000)
[Generating background events for dataset "IC59". ] 0.002 sec/iter (1000)
[Generating background events for dataset "IC79". ] 0.001 sec/iter (1000)
[Generating background events for dataset "IC86_I-XI".] 0.009 sec/iter (1000)
[Generating pseudo data. ] 0.011 sec/iter (1000)
[Initializing trial. ] 0.018 sec/iter (1000)
[Get sig probability densities and grads. ] 1.2e-06 sec/iter (88088)
[Get bkg probability densities and grads. ] 8.7e-07 sec/iter (88088)
[Calculate PDF ratios. ] 4.4e-05 sec/iter (88088)
[Calc pdfratio value Ri ] 3.2e-04 sec/iter (44044)
[Calc logLambda and grads ] 1.1e-04 sec/iter (44044)
[Evaluate llh-ratio function. ] 0.002 sec/iter (11011)
[Minimize -llhratio function. ] 0.017 sec/iter (1000)
[Maximizing LLH ratio function. ] 0.017 sec/iter (1000)
[Calculating test statistic. ] 1.4e-05 sec/iter (1000)

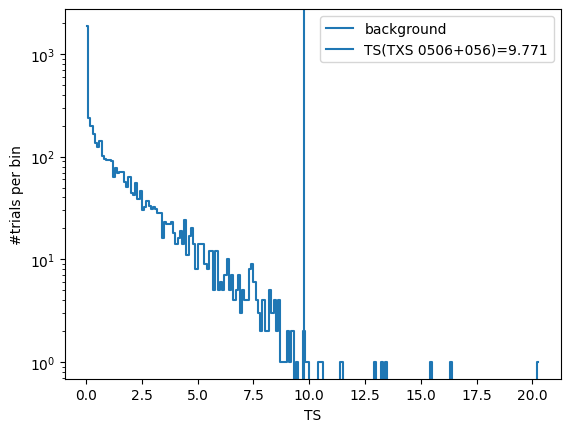

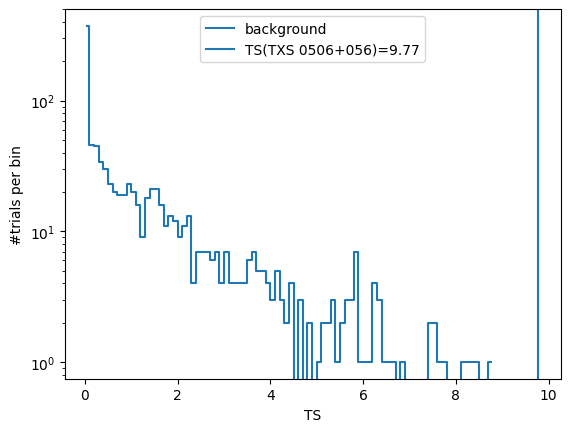

After generating the background trials, we can histogram the test-statistic values and plot the TS distribution.
[7]:
fig, ax = plt.subplots()
(h, be) = np.histogram(trials['ts'], bins=np.arange(0, np.max(trials['ts']) + 0.1, 0.1))
ax.plot(0.5 * (be[:-1] + be[1:]), h, drawstyle='steps-mid', label='background')
ax.axvline(ts, label=f'TS(TXS 0506+056)={ts:.2f}')
ax.set_yscale('log')
ax.set_xlabel('TS')
ax.set_ylabel('#trials per bin')
ax.legend()
plt.show()
One can also use a helper function extend_trial_data_file to extend the trial data if the trial data generated is not enough to estimate the p-value reliably.
[8]:
from skyllh.core.utils.analysis import extend_trial_data_file
[9]:
help(extend_trial_data_file)
Help on function extend_trial_data_file in module skyllh.core.utils.analysis:
extend_trial_data_file(
ana,
rss,
n_trials,
trial_data,
mean_n_sig=0,
mean_n_sig_null=0,
mean_n_bkg_list=None,
bkg_kwargs=None,
sig_kwargs=None,
pathfilename=None,
**kwargs
)
Appends to the trial data file `n_trials` generated trials for each
mean number of injected signal events specified by `mean_n_sig` for a
given analysis.
Parameters
----------
ana : instance of Analysis
The Analysis instance to use for sensitivity estimation.
rss : instance of RandomStateService
The RandomStateService instance to use for generating random
numbers.
n_trials : int
The number of trials the trial data file needs to be extended by.
trial_data : structured numpy ndarray
The structured numpy ndarray holding the trials.
mean_n_sig : ndarray of float | float | 2- or 3-element sequence of float
The array of mean number of injected signal events (MNOISEs) for which
to generate trials. If this argument is not a ndarray, an array of
MNOISEs is generated based on this argument.
If a single float is given, only this given MNOISEs are injected.
If a 2-element sequence of floats is given, it specifies the range of
MNOISEs with a step size of one.
If a 3-element sequence of floats is given, it specifies the range plus
the step size of the MNOISEs.
mean_n_sig_null : ndarray of float | float | 2- or 3-element sequence of float
The array of the fixed mean number of signal events (FMNOSEs) for the
null-hypothesis for which to generate trials. If this argument is not a
ndarray, an array of FMNOSEs is generated based on this argument.
If a single float is given, only this given FMNOSEs are used.
If a 2-element sequence of floats is given, it specifies the range of
FMNOSEs with a step size of one.
If a 3-element sequence of floats is given, it specifies the range plus
the step size of the FMNOSEs.
bkg_kwargs : dict | None
Additional keyword arguments for the `generate_events` method of the
background generation method class. An usual keyword argument is
`poisson`.
sig_kwargs : dict | None
Additional keyword arguments for the `generate_signal_events` method
of the `SignalGenerator` class. An usual keyword argument is
`poisson`.
pathfilename : string | None
Trial data file path including the filename.
Additional keyword arguments
----------------------------
Additional keyword arguments are passed-on to the ``create_trial_data_file``
function.
Returns
-------
trial_data :
Trial data file extended by the required number of trials for each
mean number of injected signal events..
[10]:
tl = TimeLord()
rss = RandomStateService(seed=2)
trials = extend_trial_data_file(
ana=ana, rss=rss, n_trials=4e3, trial_data=trials, pathfilename='txs_bkg_trails.npy', ncpu=8, tl=tl
)
100%|██████████| 4001/4001 [01:02<00:00, 64.44it/s]
[11]:
print(tl)
TimeLord: Executed tasks:
[Generating background events for dataset "IC40". ] 7.8e-04 sec/iter (4000)
[Generating background events for dataset "IC59". ] 0.002 sec/iter (4000)
[Generating background events for dataset "IC79". ] 0.002 sec/iter (4000)
[Generating background events for dataset "IC86_I-XI".] 0.009 sec/iter (4000)
[Generating pseudo data. ] 0.010 sec/iter (4000)
[Initializing trial. ] 0.016 sec/iter (4000)
[Get sig probability densities and grads. ] 1.1e-06 sec/iter (357296)
[Get bkg probability densities and grads. ] 8.5e-07 sec/iter (357296)
[Calculate PDF ratios. ] 4.4e-05 sec/iter (357296)
[Calc pdfratio value Ri ] 2.9e-04 sec/iter (178648)
[Calc logLambda and grads ] 1.1e-04 sec/iter (178648)
[Evaluate llh-ratio function. ] 0.001 sec/iter (44662)
[Minimize -llhratio function. ] 0.015 sec/iter (4000)
[Maximizing LLH ratio function. ] 0.015 sec/iter (4000)
[Calculating test statistic. ] 1.3e-05 sec/iter (4000)
Among utility functions saved in the library skyllh.core.utils.analysis, SkyLLH offers a function calculate_pval_from_trials that allows one to calculate the p-value emprically directly from the distribution of background trials. The function takes the created background-only pseudo-experiments and the observed TS value and it returns the corresponding p-value and the related statistical uncertainty.
[12]:
from skyllh.core.utils.analysis import calculate_pval_from_trials
[13]:
help(calculate_pval_from_trials)
Help on function calculate_pval_from_trials in module skyllh.core.utils.analysis:
calculate_pval_from_trials(ts_vals, ts_threshold, comp_operator='greater_equal')
Calculates the percentage (p-value) of test-statistic trials that are
above the given test-statistic critical value.
In addition it calculates the standard deviation of the p-value assuming
binomial statistics.
Parameters
----------
ts_vals : (n_trials,)-shaped 1D ndarray of float
The ndarray holding the test-statistic values of the trials.
ts_threshold : float
The critical test-statistic value.
comp_operator: string, optional
The comparison operator for p-value calculation. It can be set to one of
the following options: 'greater' or 'greater_equal'.
Returns
-------
p, p_sigma: tuple(float, float)
[14]:
trials = np.load('txs_bkg_trails.npy')
[15]:
p_val_from_trials, p_val_from_trials_sigma = calculate_pval_from_trials(trials['ts'], ts)
print(f'p_value calculated from trials: {p_val_from_trials:.3e}')
p_value calculated from trials: 2.200e-03
Here below we provide a visualization of the computed background-only pseudo-experiments TS values together with the observed TS for TXS 0506+056
[16]:
fig, ax = plt.subplots()
(h, be) = np.histogram(trials['ts'], bins=np.arange(0, np.max(trials['ts']) + 0.1, 0.1))
ax.plot(0.5 * (be[:-1] + be[1:]), h, drawstyle='steps-mid', label='background')
ax.axvline(ts, label=f'TS(TXS 0506+056)={ts:.3f}')
ax.set_yscale('log')
ax.set_xlabel('TS')
ax.set_ylabel('#trials per bin')
ax.legend()
plt.show()
Calculating the significance (local p-value) by fitting a truncated gamma function¶
It can happen (if your lucky or if you’re estimating a \(5\sigma\) discovery potential, see the Sensitivity study notebook) that the observed TS is high enough that computing background trials to calculate the corresponding p-value becomes extremely expensive.
While, the emprical estimation remains the most robust way to compute a significance, a faster alternative is to fit the tail of the generated distribution of background-only pseudo-experiments with a truncated gamma function and use it to extrapolate p-values at higher TS values.
Among the analysis utility functions, SkyLLH offers the fit_truncated_gamma function, which fits the truncated gamma function to the TS distribution.
Additionally, the calculate_pval_from_gammafit_to_trials function provides a wrapper method that runs the fit and returns the p-value estimated from the fit.
..note:: Please note that fitting the truncated gamma function requires the iminuit Python package.
[17]:
from scipy.stats import gamma
from skyllh.core.utils.analysis import (
calculate_critical_ts_from_gamma,
calculate_pval_from_gammafit_to_trials,
fit_truncated_gamma,
)

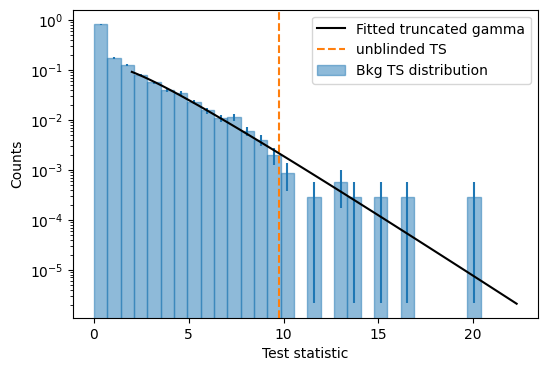

You need to truncate the distribution at some \(\eta > 0\) because the TS distribution is the sum of a delta peak at 0 and a continuous distribution for TS > 0. Here we choose \(\eta=2.0\).
[18]:
eta = 2.0
pars, norm = fit_truncated_gamma(trials['ts'], eta=eta)
# Plot
fig, ax = plt.subplots(1, 1, figsize=(6, 4))
bins = np.linspace(0, np.max(trials['ts']) + 0.1, 30)
counts, _ = np.histogram(trials['ts'], bins=bins, density=True)
ax.bar(
0.5 * (bins[1:] + bins[:-1]),
height=counts,
width=bins[1:] - bins[:-1],
edgecolor='C0',
color='C0',
alpha=0.5,
label='Bkg TS distribution',
)
ax.errorbar(
0.5 * (bins[1:] + bins[:-1]),
counts,
yerr=np.sqrt(counts / len(trials['ts']) / (bins[1:] - bins[:-1])),
fmt='',
ls='',
color='C0',
)
bins = bins[bins > eta]
bincenters = 0.5 * (bins[1:] + bins[:-1])
bw = bins[1:] - bins[:-1]
ax.set_yscale('log')
vals = np.linspace(eta, np.max(trials['ts']) + 2, 100)
ax.plot(
vals, norm * gamma.pdf(vals, a=pars[0], scale=pars[1]), lw=1.5, color='k', zorder=5, label='Fitted truncated gamma'
)
ax.axvline(ts, color='C1', linestyle='--', label='unblinded TS')
ax.set_xlabel('Test statistic')
ax.set_ylabel('Counts')
ax.legend()
plt.show()
calculate_critical_ts_from_gamma function calculates the TS you would need in your analysis to reach a given significance.
[19]:
critical_ts = calculate_critical_ts_from_gamma(
ts=trials['ts'],
h0_ts_quantile=1.3e-3, # this is ~ 3 sigma
eta=1.0,
)
print(f'TS value for a 3 sigma detection: {critical_ts:.2f}')
critical_ts = calculate_critical_ts_from_gamma(
ts=trials['ts'],
h0_ts_quantile=2.9e-7, # this is ~ 5 sigma
eta=1.0,
)
print(f'TS value for a 5 sigma detection: {critical_ts:.2f}')
TS value for a 3 sigma detection: 12.34
TS value for a 5 sigma detection: 29.47
And of course you can also calculate the p-value for the observed TS from the fitted function. This should result in a very similar result to the one estimated empirically from the trials.
[20]:
p_val_from_fit, _ = calculate_pval_from_gammafit_to_trials(trials['ts'], ts, eta=eta)
print(f'p_value calculated from fit: {p_val_from_fit:.3e}')
p_value calculated from fit: 3.939e-03
Practially, one might be interested in flip-flopping from one estimation method to the other depending on how high the TS value of interest is and on how many pseudo-experiments have been computed to populate the background TS distribution.
This feature exists in the calculate_pval_from_trials_mixed method, which takes a switch_at_ts additional argument to set at what TS value one should switch from the empirical estimation to the evaluation of the truncated gamma fit.
[21]:
from skyllh.core.utils.analysis import calculate_pval_from_trials_mixed
help(calculate_pval_from_trials_mixed)
Help on function calculate_pval_from_trials_mixed in module skyllh.core.utils.analysis:
calculate_pval_from_trials_mixed(
ts_vals,
ts_threshold,
switch_at_ts=3.0,
eta=None,
n_max=500000,
comp_operator='greater_equal'
)
Calculates the probability (p-value) of test-statistic exceeding
the given test-statistic threshold. This calculation relies on fitting
a gamma distribution to a list of ts values if ts_threshold is larger than
switch_at_ts. If ts_threshold is smaller then the pvalue will be taken
from the trials directly.
Parameters
----------
ts_vals : (n_trials,)-shaped 1D ndarray of float
The ndarray holding the test-statistic values of the trials.
ts_threshold : float
The critical test-statistic value.
switch_at_ts : float, optional
Test-statistic value below which p-value is computed from trials
directly. For thresholds greater than switch_at_ts the pvalue is
calculated using a gamma fit.
eta : float, optional
Test-statistic value at which the gamma function is truncated
from below. Default is None.
n_max : int, optional
The maximum number of trials that should be used during
fitting. Default = 500,000
comp_operator: string, optional
The comparison operator for p-value calculation. It can be set to one of
the following options: 'greater' or 'greater_equal'.
Returns
-------
p, p_sigma: tuple(float, float)
